Description
| Dimensions: |
Length: 16 in (40.6 cm)
Width: 7.25 in (18.4 cm)
Height: 10.25 in (26.0 cm)
|
| Weight: |
Device Only: 19.5 lbs (8.8 kg)
Shipping: 23 lbs (10.4 kg)
|
| Electrical: |
AC Input Domestic: 108 – 132 VAC, 60 Hz, 5 Amps
AC Input Export: 207 – 253 VAC, 50 Hz, 2.5 Amps
|
| Outlet: | Grounded 9/16 – 18 Male Threaded Fitting |
| Operating Temperature Range: |
Temperature Range: 40°F to 114°: (4.4°C to 45.5 °C)
Publish: 50°F to 104°: (10°C to 40 °C)
|
| Transport / Storage Requirements: | Temperature Range: -14°F to 120°F (-25.5°C to 48.9°C)
Publish: -4°F to 104°F (-20°C to 40°C)
Maximum Humidity: Max 95% non-condensing
|
| Max Sustained Pressure: | 60 psig (PM15P) |
| Output Flow @ Max Setting: |
PM15F LPM – set value on the gauage ± 1. (Max flow setting ≥ 13.0 l/min)
PM15P (E): Min 9 l/min @ 50 psig
|
| Gauge Accuracy: | ±3.2.3% |
| Noise level: | 60 db @ 1 meter |
| Safety Systems: | High Temperature Motor Shutdown, Class B, Thermal Limit Automatic Reset |
| Equipment Classification: |
Class I – with respect to protection from electrical shock
Type B – degree of protection against electrical shock
IPX0 – degree of protection against ingress of liquids
|
| Mode of Operation: | Continuous |

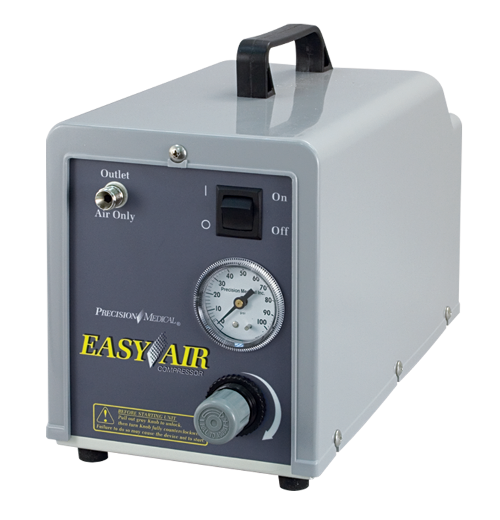

*The PM15F and PM15P (EasyAir Compressors) are not currently CE approved.
