Description
| Dimensions: |
Length: 10.25 in (26.04 cm)
Width: 5.25 in (13.34 cm)
Height: 9.5 in (24.13 cm)
|
| Weight: |
Device Only: 9.7 lbs (4.4 kg)
Shipping: 11.2 lbs (5.1 kg)
|
| Electrical: |
AC Input Domestic: 108 – 132 VAC, 60 Hz, 5 Amps
AC Input Export: 207 – 253 VAC, 50 Hz, 2.2 Amps
|
| Operating Temperature Range: | 50°F to 104°F (10°C to 40°C) |
| Transport / Storage Requirements: |
Temperature Range: -4°F to 120°F (-20°C to 49°C)
Maxiimum Humidity: Max 95% Non-condensing
|
| Outlet: | Grounded 9/16 – 18 Male Threaded Fitting |
| Max Sustained Pressure: | 60 psi (Dead Head Pressure ≥ 85 psi) |
| Flow Output @ Max setting: | ≥ 13 LPM @ 50 psi |
| Gauge Accuracy: | ± 3.2.3% |
| Noise level: | 72 db @ 1 meter/with Neb attached. |
| Safety Systems: | High Temperature Motor Shutdown, Class B, Thermal Limit Automatic Reset |
| Equipment Classification: |
Class I – with respect to protection from electrical shock
Type B – degree of protection against electrical shock
IPX0 – degree of protection against ingress of liquids
|
| Mode of Operation: | Continuous |
*Specifications are subject to change without prior notice.*

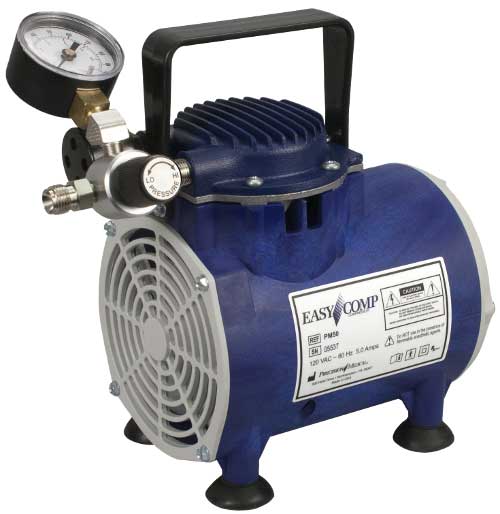

*The PM50 (EasyComp Compressor) is not currently CE approved.
